Hoppers
Application specific feed
hoppers configured to maximize efficiency and thruput.
hoppers configured to maximize efficiency and thruput.
.avif)
Drive Configurations
Electric, hydraulic, and SmartDrive™ options available to
meet requirements of the application.
meet requirements of the application.
.avif)
Direct Drive
Simple and efficient drive with no belts to maintain.
.avif)
Cleaning Fingers
Keeps shredded material from building between cutters.
.avif)
Pierce-Point Cutters
Effectively pull material into the center of the cutting chamber and cut it into strips approximately the same width as the cutter.
.avif)
Patented ACLS™
Advanced Cutter Locking System (ACLS) efficiently maintains a tight cutter stack, minimizes maintenance, and prolongs cutter life.
.avif)
Seal & Bearing Protection
Combination of conventional & labyrinth seals to prevent contamination from the cutting chamber.
Details

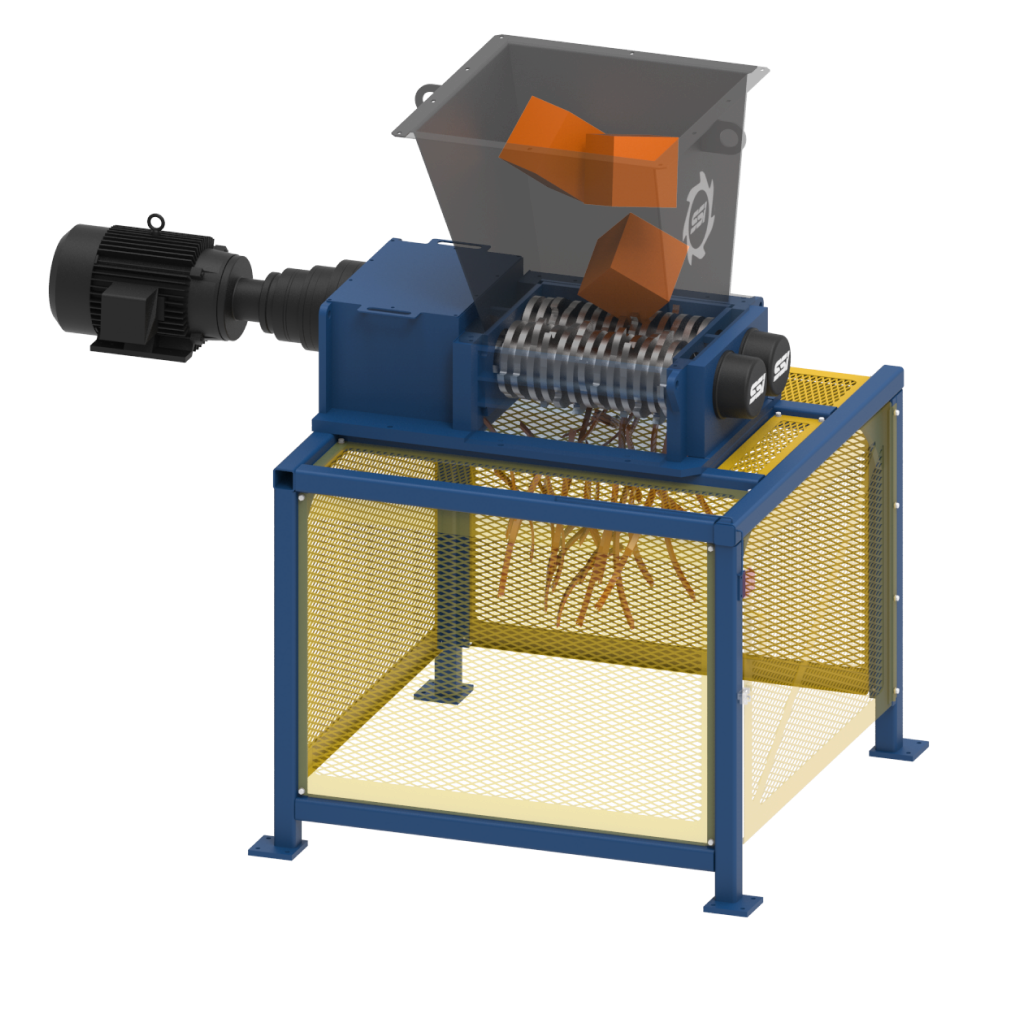

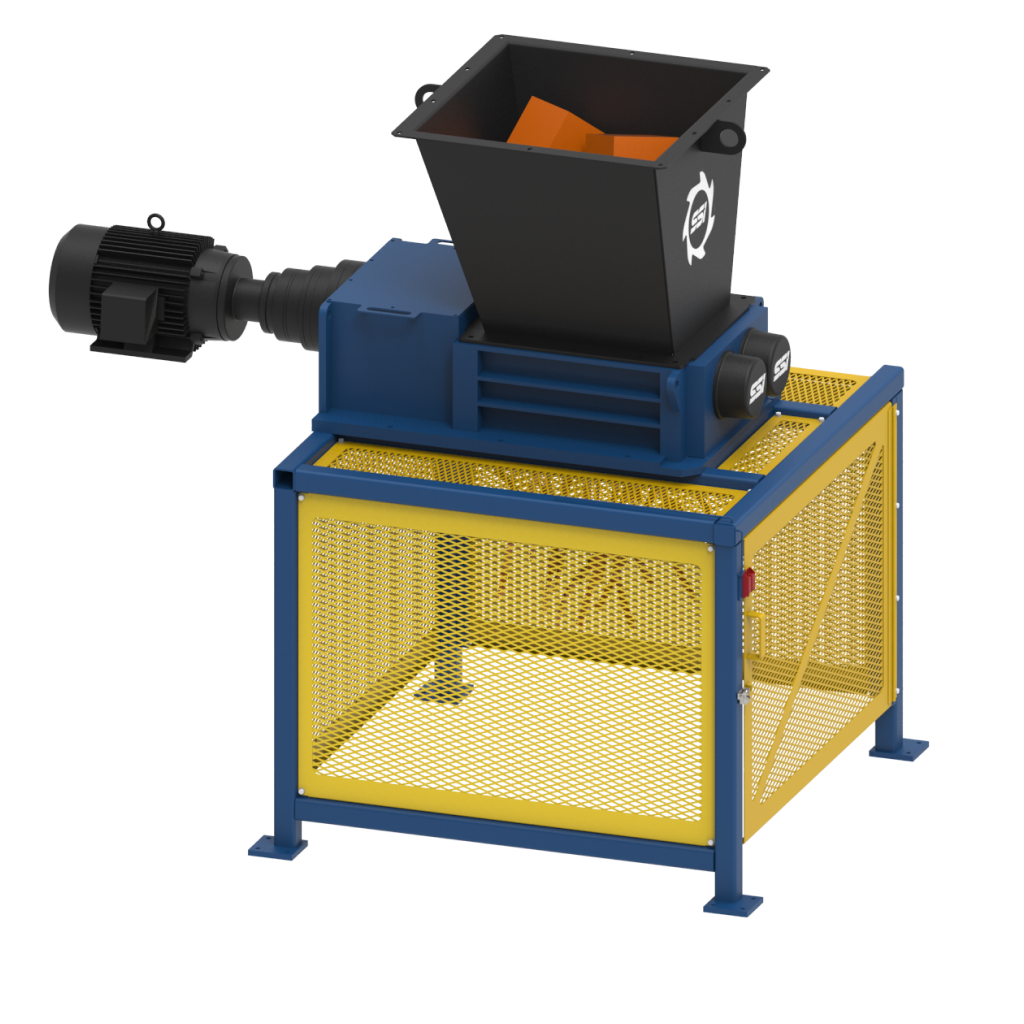

The SSI Dual-Shear® M50 is a compact, high-torque, low-speed two-shaft rotary shear shredder engineered for reliable processing of tough materials with minimal maintenance. Designed for multipurpose shredding, it handles mixed waste, wood, plastics, medical waste, paper, electronics, light metals, and more.
Specifications
| Shredder Model | Model Name M50E |
|---|---|
| Drive | Electric |
| Number of Motors | One |
| Power (Range) | 19 kW (25 hp) |
| Voltage | 460/3/60 |
| Voltage Options | Many - Consult Factory |
| Autochop Feature | |
| Shock Load Protection | Amperage overload reversals |
| Cutter Thickness (nominal) | 25 mm (1 in) |
| Cutter Diameter | 290 mm (11.4 in) |
| Cutter Material | HW5 |
| Shaft Diameter | |
| Number of Cutters | |
| Rotor Diameter | |
| Rotor Speed (rpm) | |
| Screen Sizes | |
| Active Rotor Length | |
| Cutting Chamber (WxL) | 485 x 485 mm (19 x 19 in) |
| Hopper Capacity | |
| Machine Length | 2,616 mm (103 in) |
| Machine Width | 1,676 mm (66 in) |
| Machine Height | 2,642 mm (104 in |
| Machine Weight | 1,659 kg (3,650 lbs) |
| Hydraulic Ram | |
| Hopper Opening | 1,000 x 882 mm (39 x 34.25 in) |
| Hopper Height | 914 mm (36 in) |
| Stand Height | 1,245 mm (49 in) |
| HPU Configuration | |
| HPU Dimensions | |
| HPU Weight |

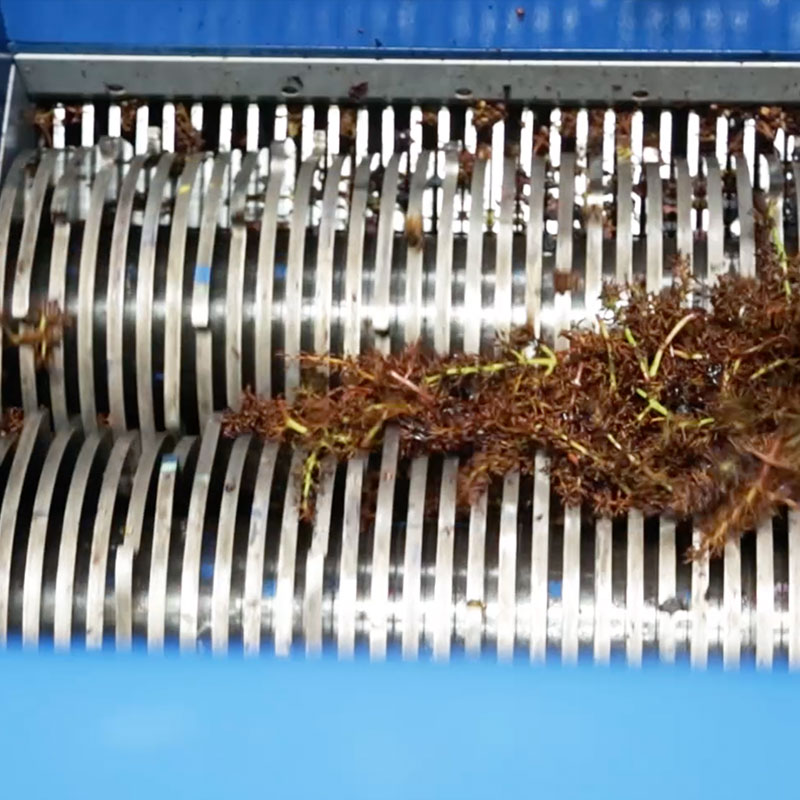

Chamber & Particles
Advantages
- High-torque shearing technology efficiently processes tough materials
- Wear-resistant cutters
- Shock protection
- Bulk feed capability
- Energy efficient operation
- Low noise, dust, heat generation and maintenance costs
- Heavy-duty construction
- Minimum foundation requirements
- Minimal “fines” generation
Design Features
- Electric and SmartDrive® drive configurations
- Self-Cleaning Design
- Application-specific feed hoppers and cutter configurations
- Seal & bearing protection
- Patented “Advanced Cutter Locking System” (ACLS)
