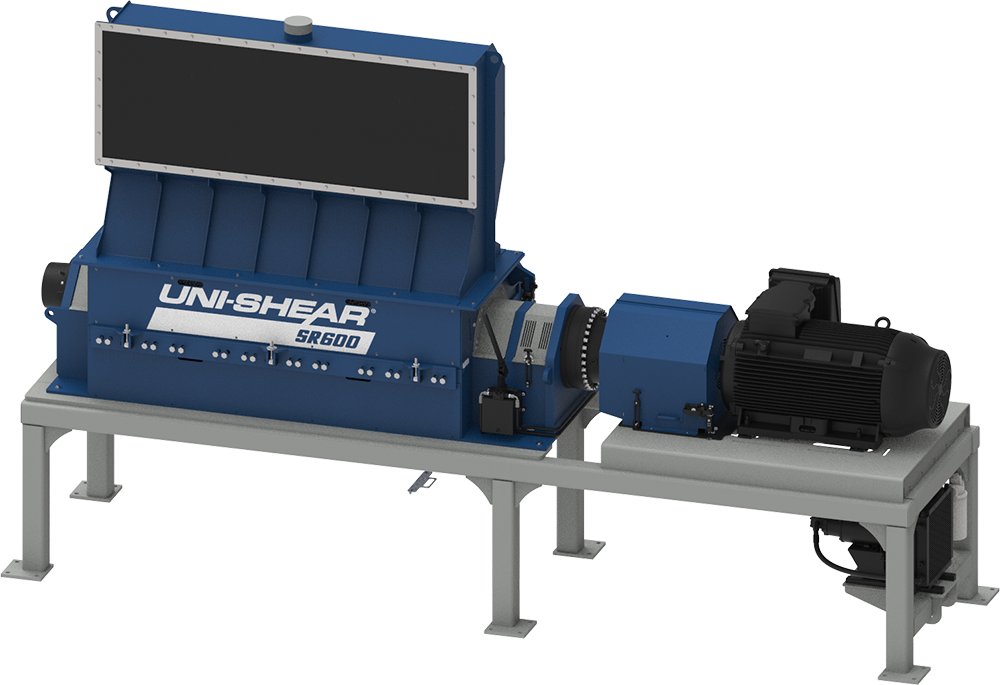

The Uni-Shear® SR600F is a robust finishing machine targeted at applications traditionally held by granulators, such as plastics, rubber, ICW (insulated copper wire) and non-ferrous metals. It excels at taking flowable, preconditioned material and reducing it to a desirable particle size, typically between ¼" and 2” depending on the application. This finisher typically operates at rates of 2 to 9+ tons per hour depending on the material and screen selection.
Specifications
| Shredder Model | Uni-Shear® SR600F |
|---|---|
| Drive | In-line direct-drive |
| Number of Motors | |
| Power (Range) | 186 kW (250 hp) |
| Voltage | 460/3/60 standard; other options available |
| Voltage Options | |
| Autochop Feature | |
| Shock Load Protection | |
| Cutter Thickness (nominal) | |
| Cutter Diameter | |
| Cutter Material | |
| Shaft Diameter | |
| Number of Cutters | |
| Rotor Diameter | 600 mm (23.6 in) |
| Rotor Speed (rpm) | |
| Screen Sizes | 4 to 50 mm (0.15 - 2 in) |
| Active Rotor Length | |
| Cutting Chamber (WxL) | 555 x 2,055mm (21.8 x 81 in) |
| Hopper Capacity | |
| Machine Length | Layout dependent |
| Machine Width | Layout dependent |
| Machine Height | Layout dependent |
| Machine Weight | 9,900 kg (22,000 lbs) |
| Hydraulic Ram | |
| Hopper Opening | |
| Hopper Height | |
| Stand Height | |
| HPU Configuration | |
| HPU Dimensions | |
| HPU Weight |

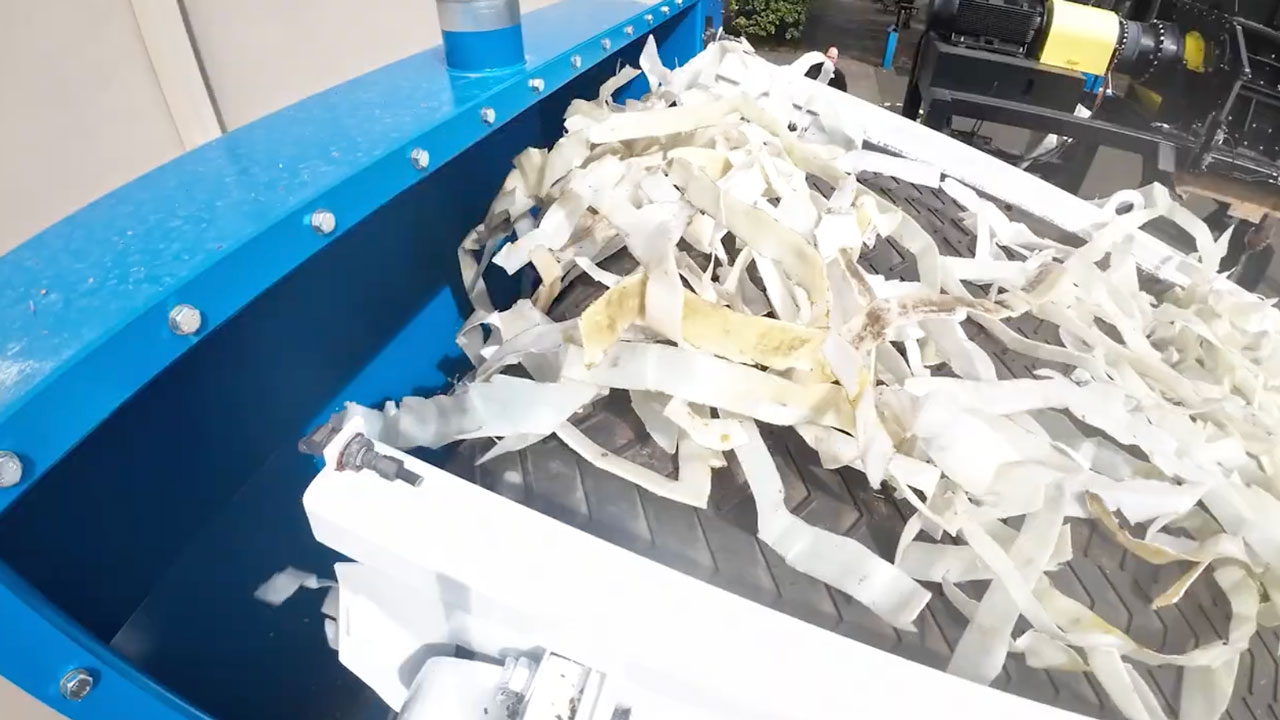

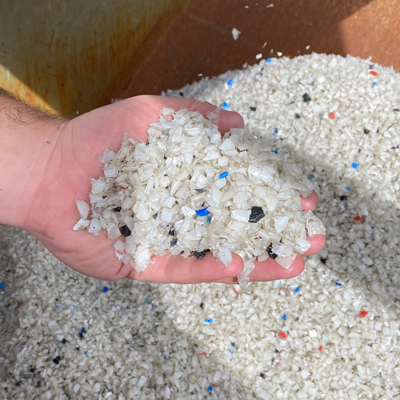

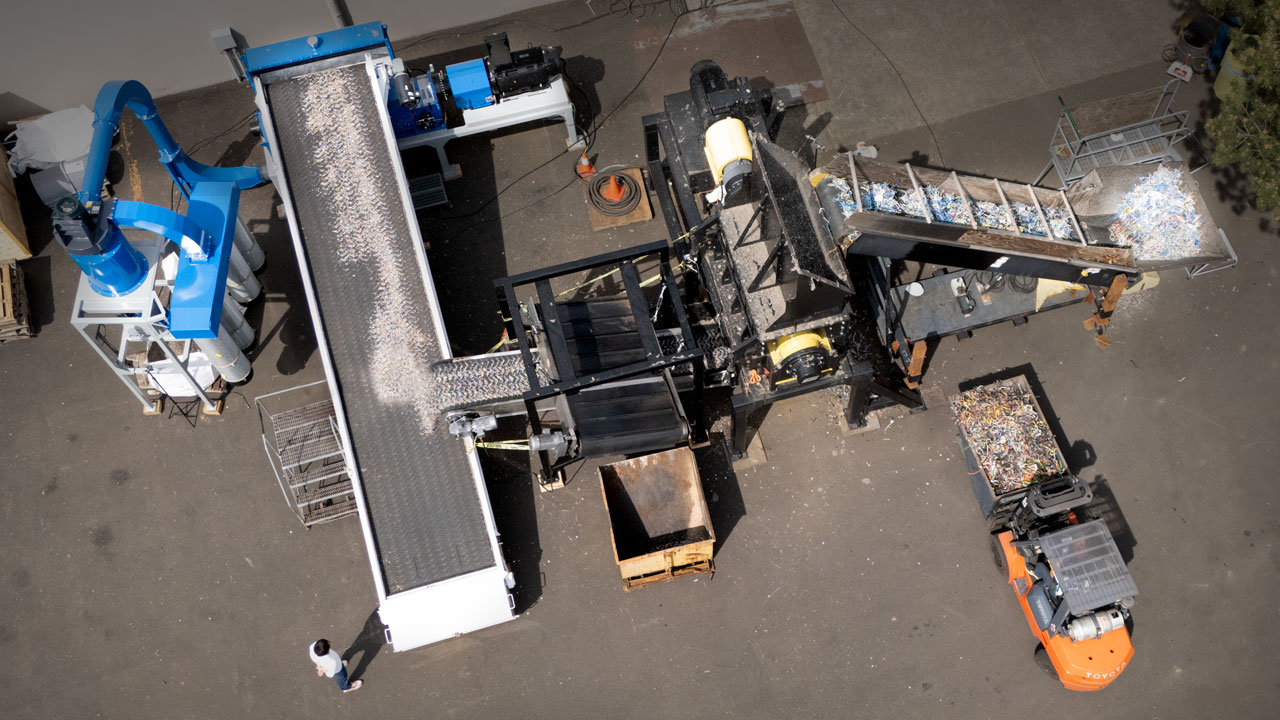

Shredder output
Advantages
Maximum Capacity: Features screens that wrap entirely around the bottom of the rotor to maximize available surface area and optimize throughput.
Double Cutting Action: A second anvil creates twice the opportunity to cut material per revolution of the rotor.
On-the-Fly Adjustments: Maintain "zero clearance" by adjusting the cutter-to-anvil gap while the machine is running.
Extreme Durability: Built from the same heavy-duty "DNA" as SSI grinders, featuring specific wear liners and metallurgy for processing metal-laden materials.
Rapid Changeovers: Screens can be removed or flipped in less than 15 minutes to minimize production downtime.
Safety Features: Includes mechanical rotor locks to ensure the machine is secure during inspection and service without requiring main motor power.
